Benchmarks
RadiObject enables 200-560x faster partial reads and native S3 access.
Configuration: batch_size=4, patch_size=64^3, n_runs=10, 20 MSD subjects, local SSD + S3 (us-east-2)

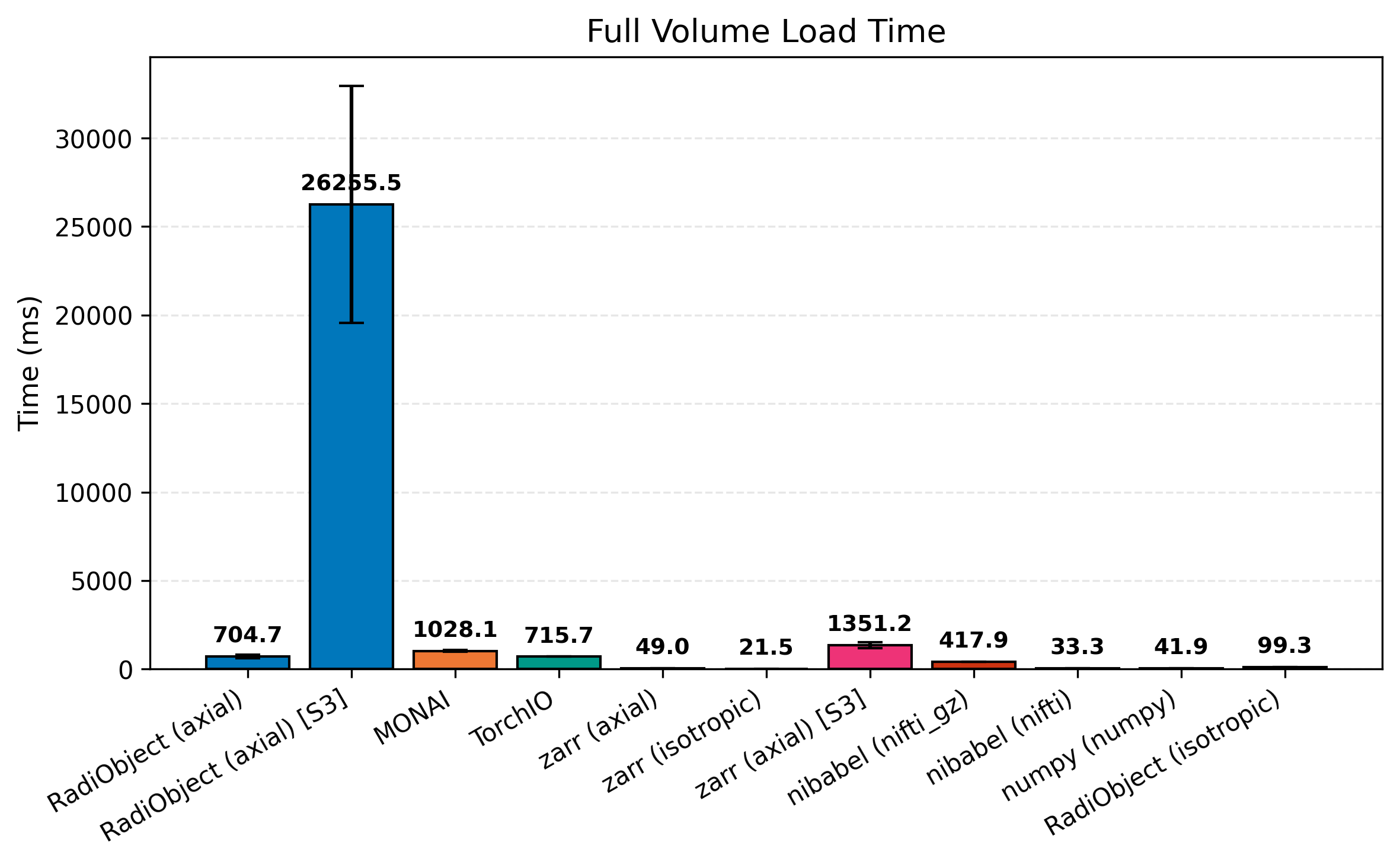

Full Volume Load
| framework | scenario | tiling | time_ms | cpu_pct | heap_mb |
|---|---|---|---|---|---|
| RadiObject | local | isotropic | 99 | 62 | 304 |
| nibabel | local | - | 33 | 31 | 608 |
| numpy | local | - | 42 | 38 | 608 |
| nibabel | local | gzip | 418 | 24 | 912 |
| RadiObject | local | axial | 705 | 40 | 304 |
| TorchIO | local | - | 716 | 38 | 304 |
| MONAI | local | - | 1028 | 26 | 608 |
| RadiObject | s3 | axial | 26256 | 16 | 304 |
| zarr | local | axial | 49 | 51 | 146 |
| zarr | local | isotropic | 22 | 59 | 177 |
| zarr | s3 | axial | 1351 | 34 | 142 |
RadiObject isotropic (99ms) is competitive with raw nibabel (33ms) while enabling random access. Zarr full volume loads are fast (22-49ms local) due to lightweight metadata, but lack RadiObject's integrated metadata and caching layer.
See Performance: Why Full Volume is Slower for interpretation.

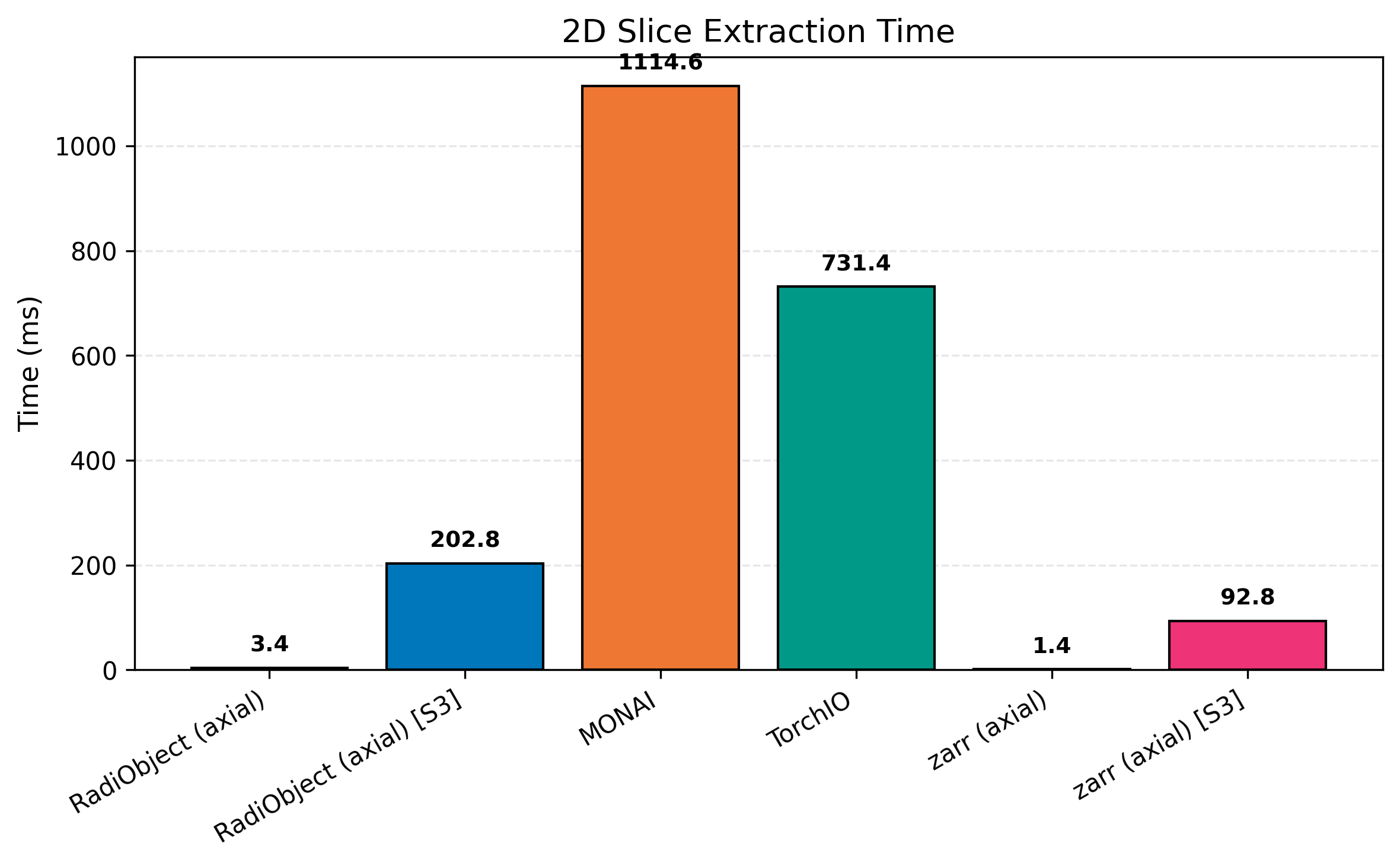

2D Slice Extraction
| method | scenario | tiling | time_ms |
|---|---|---|---|
| RadiObject | local | axial | 3.4 |
| zarr | local | axial | 1.4 |
| RadiObject | local | isotropic | 24 |
| RadiObject | s3 | axial | 203 |
| zarr | s3 | axial | 93 |
| MONAI | local | - | 1115 |
| TorchIO | local | - | 731 |
Both chunked formats achieve sub-5ms local slice extraction. Zarr's lower overhead gives a slight edge for individual slices, while RadiObject's caching benefits repeated access.
See Performance: Why Axial Tiling Gives 200-600x Speedup for interpretation.

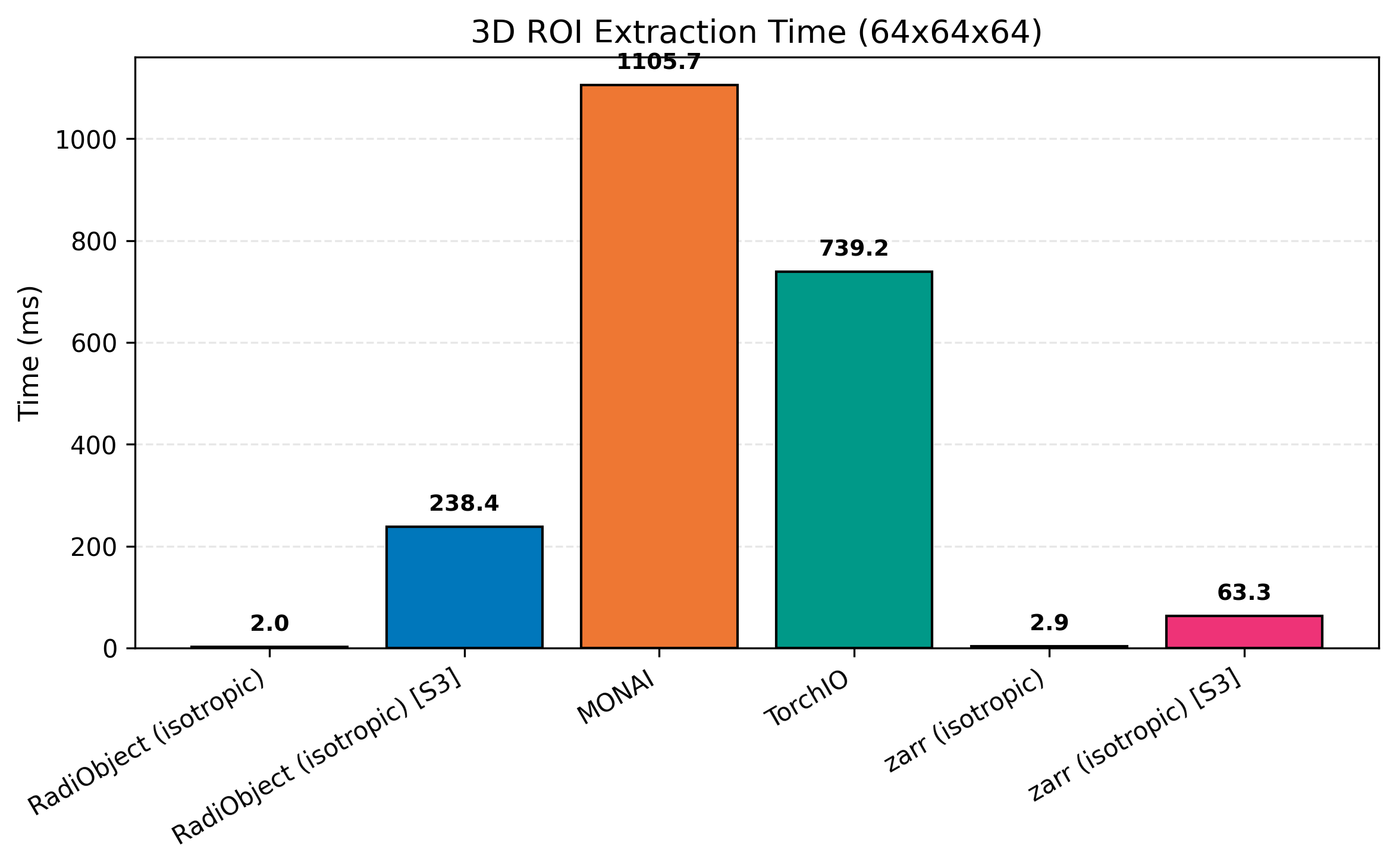

3D ROI Extraction
| method | scenario | tiling | time_ms |
|---|---|---|---|
| RadiObject | local | isotropic | 2.0 |
| zarr | local | isotropic | 2.9 |
| RadiObject | local | axial | 20 |
| RadiObject | s3 | isotropic | 238 |
| zarr | s3 | isotropic | 63 |
| MONAI | local | - | 1106 |
| TorchIO | local | - | 739 |

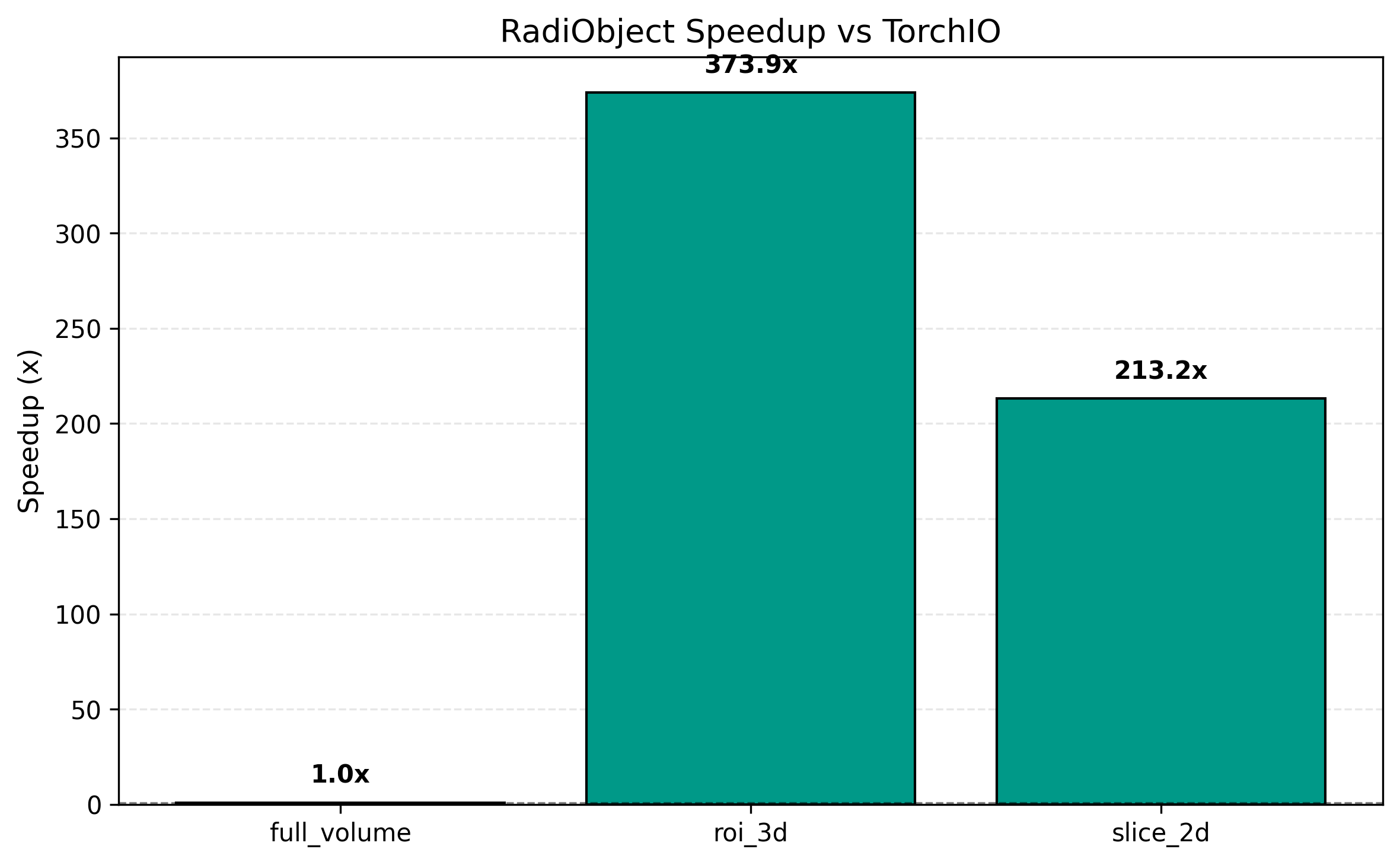

559x faster than MONAI, 374x faster than TorchIO for isotropic 64^3 ROIs. RadiObject and Zarr are comparable for local 3D partial reads.
See Performance: Why Isotropic is Best for 3D Patches for interpretation.

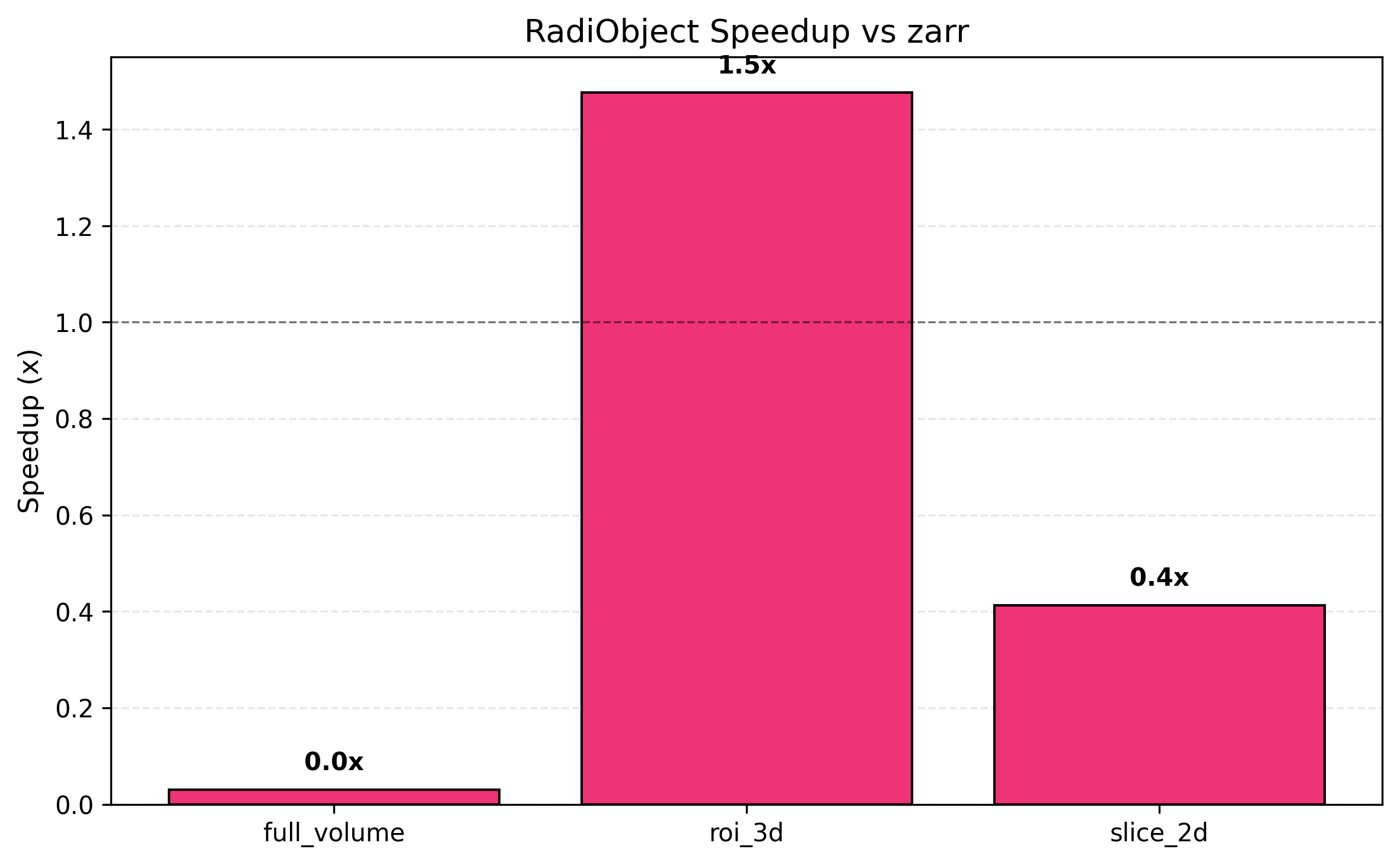

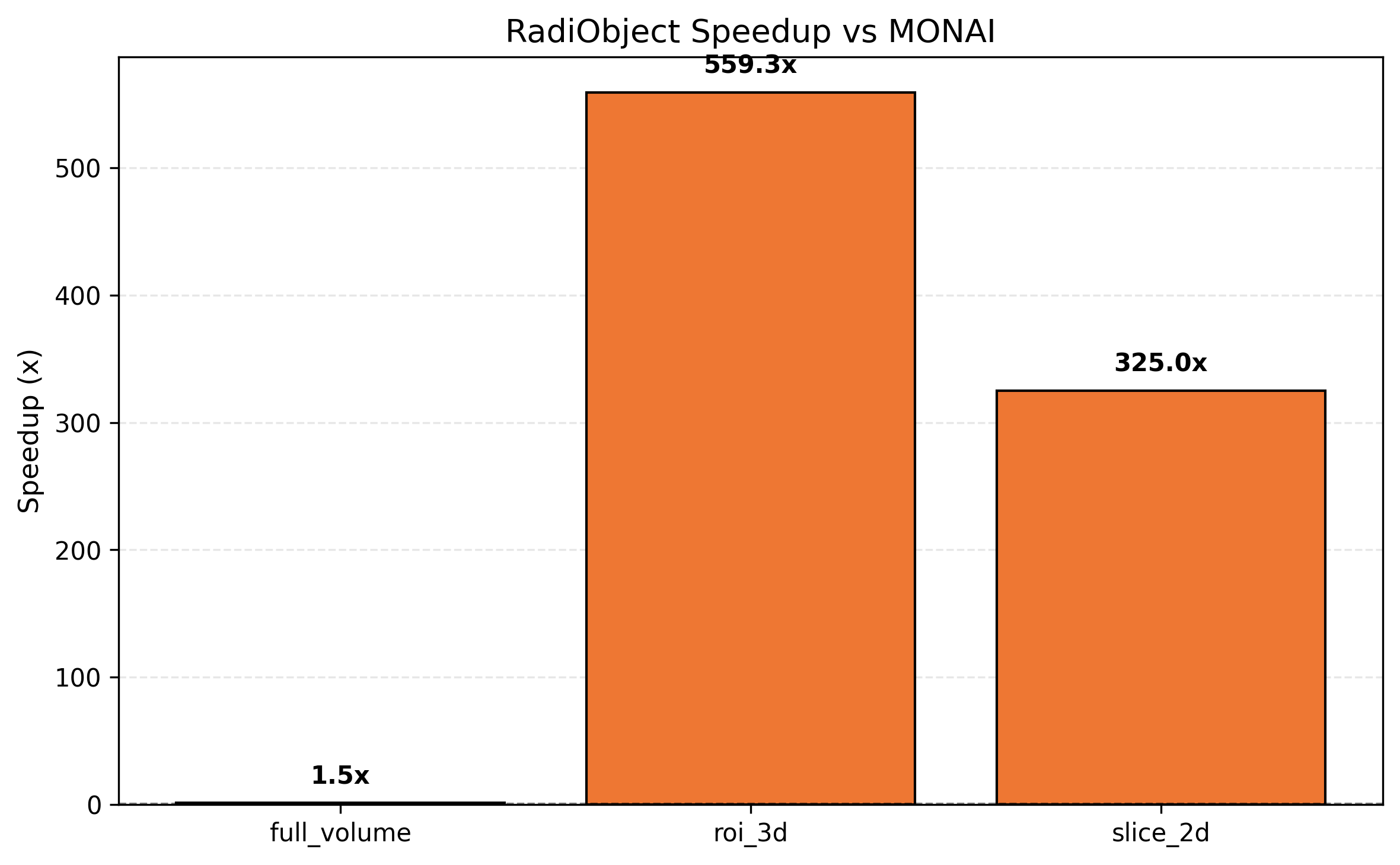

Framework Speedups
| operation | monai_ms | torchio_ms | zarr_ms | radiobject_ms | vs_monai | vs_torchio | vs_zarr |
|---|---|---|---|---|---|---|---|
| slice_2d | 1115 | 731 | 1.4 | 3.4 | 325x | 213x | 0.4x |
| roi_3d | 1106 | 739 | 2.9 | 2.0 | 559x | 374x | 1.5x |
MONAI and TorchIO must load the full volume for any access pattern. RadiObject and Zarr both read only the chunks/tiles needed. RadiObject adds integrated metadata, caching, and S3 VFS — Zarr is a raw array format.
S3 vs Local
| framework | operation | scenario | tiling | time_ms |
|---|---|---|---|---|
| RadiObject | full_volume | local | axial | 705 |
| RadiObject | full_volume | s3 | axial | 26256 |
| RadiObject | slice_2d | local | axial | 3.4 |
| RadiObject | slice_2d | s3 | axial | 203 |
| RadiObject | roi_3d | local | isotropic | 2.0 |
| RadiObject | roi_3d | s3 | isotropic | 238 |
| zarr | full_volume | local | axial | 49 |
| zarr | full_volume | s3 | axial | 1351 |
| zarr | slice_2d | local | axial | 1.4 |
| zarr | slice_2d | s3 | axial | 93 |
| zarr | roi_3d | local | isotropic | 2.9 |
| zarr | roi_3d | s3 | isotropic | 63 |
Partial reads on S3 (203-238ms) are 110-130x faster than full volume S3 reads (26256ms). Zarr S3 reads via fsspec are faster for individual operations but lack TileDB's VFS-level parallelism for batch access.
See Performance: Why S3 is ~14x Slower for interpretation.

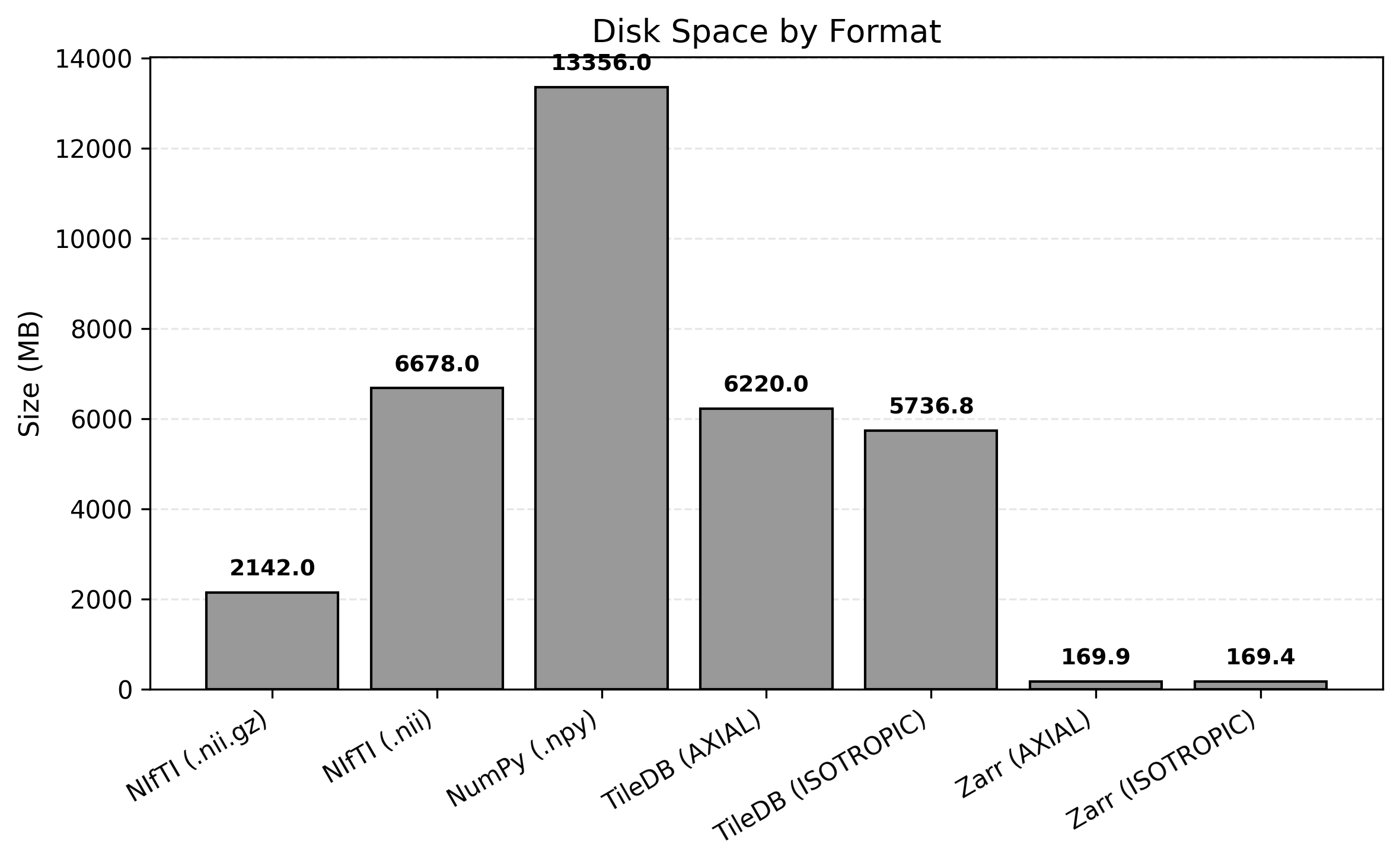

Format and Storage Overhead
| format | size_gb | compression | partial_read |
|---|---|---|---|
| NIfTI (.nii.gz) | 2.1 | 2.84x | No |
| NIfTI (.nii) | 6.5 | 0.91x | No |
| NumPy (.npy) | 13.0 | 0.46x | No |
| TileDB (axial) | 6.1 | 0.98x | Yes |
| TileDB (iso) | 5.6 | 1.06x | Yes |
| Zarr (axial) | 0.2 | 35.8x | Yes |
| Zarr (iso) | 0.2 | 35.9x | Yes |
TileDB uses ~3x more space than gzipped NIfTI, but enables partial reads that are 200-560x faster. Zarr achieves high compression (36x) on sparse medical imaging data (MSD brain tumour) due to low per-chunk overhead with ZSTD.

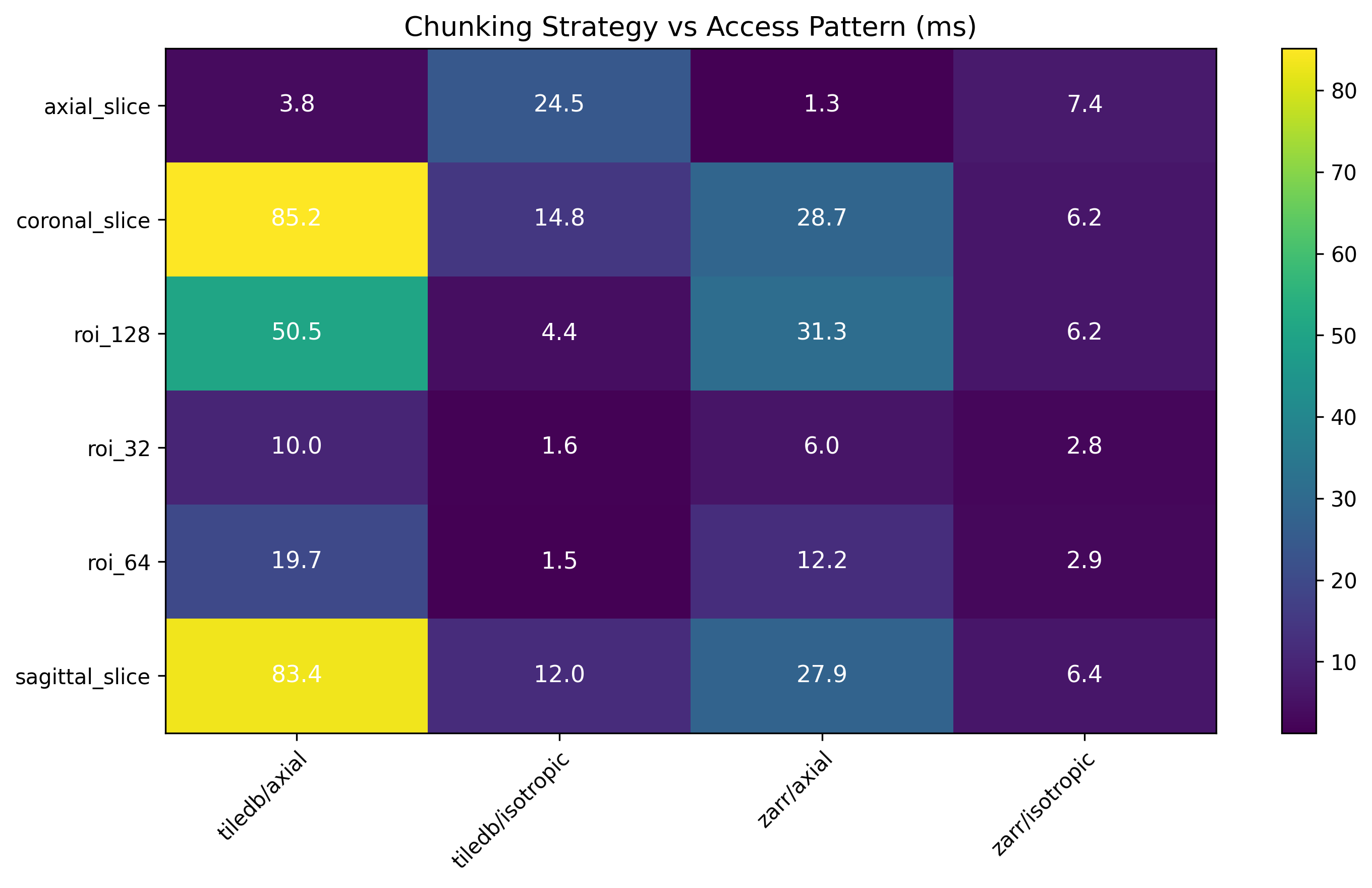

Tiling Strategy Impact
| access_pattern | axial_ms | isotropic_ms | best_choice |
|---|---|---|---|
| axial_slice | 3.8 | 24 | Axial |
| coronal_slice | 85 | 15 | Isotropic |
| sagittal_slice | 83 | 12 | Isotropic |
| roi_32 | 10 | 1.6 | Isotropic |
| roi_64 | 20 | 1.5 | Isotropic |
| roi_128 | 51 | 4.4 | Isotropic |
Zarr Chunking:
| access_pattern | zarr_axial_ms | zarr_isotropic_ms |
|---|---|---|
| axial_slice | 1.3 | 7.4 |
| coronal_slice | 29 | 6.2 |
| sagittal_slice | 28 | 6.4 |
| roi_32 | 6.0 | 2.8 |
| roi_64 | 12 | 2.9 |
| roi_128 | 31 | 6.2 |
See Performance: Tiling Strategy Guide.
Memory Efficiency
| operation | radiobject_mb | nifti_load_mb |
|---|---|---|
| slice_extraction | 1 | 300-900 |
| full_volume | 304 | 300-600 |
Partial reads use minimal memory because only the requested tiles are loaded.

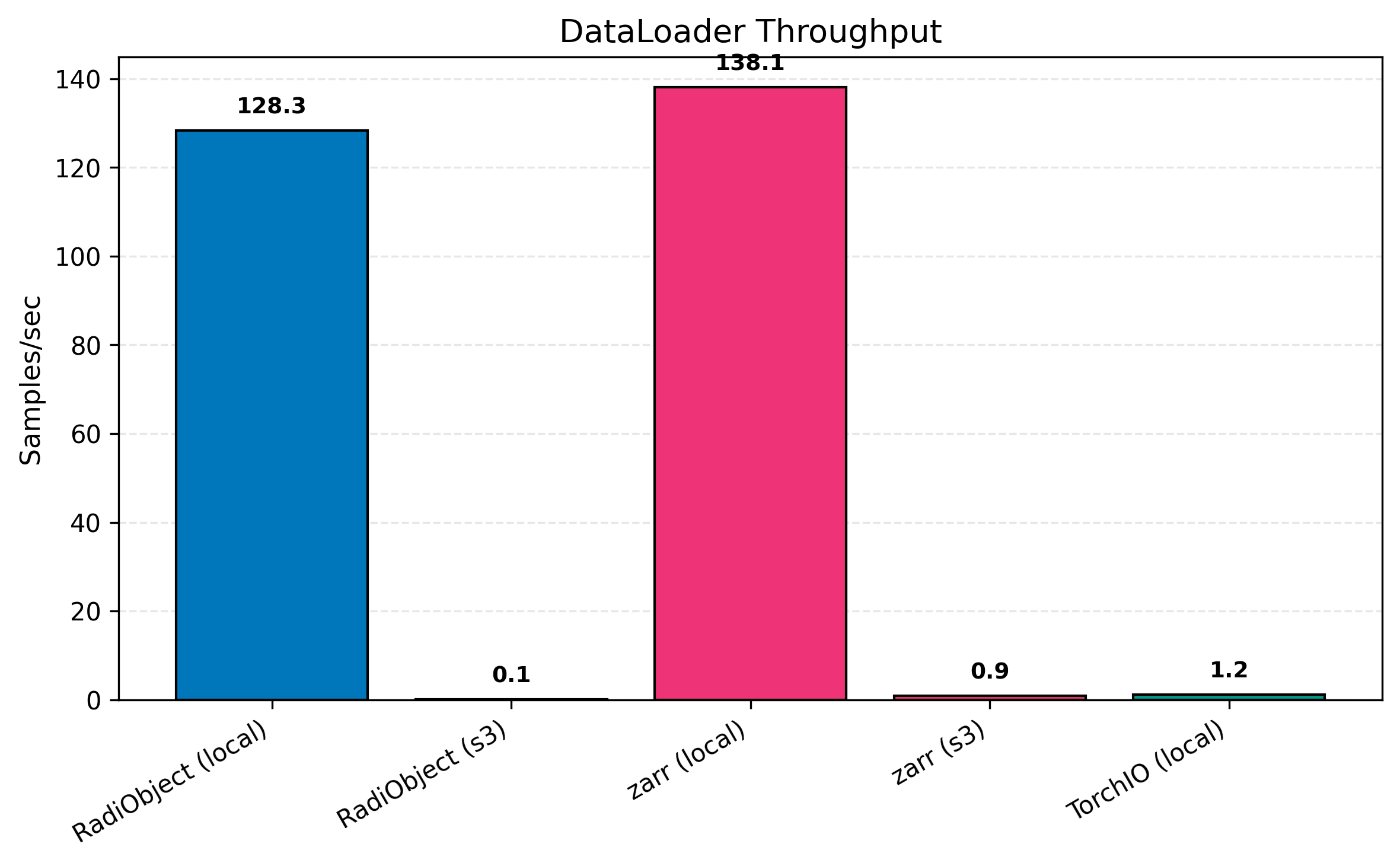

ML Training Throughput
| framework | ms_per_batch | samples_per_sec | notes |
|---|---|---|---|
| RadiObject | 31 | 128 | isotropic, local |
| zarr | 29 | 138 | isotropic, local |
| TorchIO | 3306 | 1.2 | local, full volume load |
| zarr | 4423 | 0.9 | isotropic, S3 |
| RadiObject | 31434 | 0.1 | isotropic, S3 |
Zarr and RadiObject achieve comparable local throughput (~128-138 samples/sec). Both are 100x faster than TorchIO for patch-based training (batch_size=4, patch_size=64^3). On S3, Zarr's fsspec issues async chunk requests more efficiently (0.9 vs 0.1 samples/sec).
Patch-Based I/O Reduction
| loading_mode | data_per_sample | 10k_subject_epoch_io |
|---|---|---|
| FULL_VOLUME | 35.6 MB | 356 GB |
| PATCH (64^3) | 262 KB | 2.6 GB |
| PATCH (128^3) | 2.1 MB | 21 GB |
Multi-Worker Scaling
| num_workers | time_3_volumes | time_per_volume |
|---|---|---|
| 0 | 0.16s | 0.05s |
| 1 | 6.06s | 2.02s |
| 2 | 11.14s | 3.71s |
num_workers=0 for <100 volumes, num_workers=4-8 for >1000 volumes.
See Performance: Why Multi-Worker DataLoaders Slow Down for interpretation.
Cache Hit Rates (TileDB)
TileDB maintains a built-in LRU tile cache within its context object. Zarr v3 has no built-in chunk cache — it relies on OS page cache for local reads and has no caching for S3. This is a key TileDB advantage for workloads with repeated or overlapping access patterns.
| access_pattern | tiledb_hit_rate | zarr |
|---|---|---|
| Sequential (shared context) | 85-95% | OS page cache only |
| Random (shared context) | 60-75% | OS page cache only |
| Repeated slices (same volume) | 90-99% | OS page cache only |
| S3 repeated access | 85-95% | No cache (re-fetches) |
| Isolated contexts | 0% | 0% |
Parallel Write Scaling
| workers | local_ssd_mb_s | s3_mb_s |
|---|---|---|
| 1 | ~140 | ~50 |
| 4 | ~410 | ~150 |
| 8 | ~650 | ~250 |
| 16 | ~800 | ~300 |
Throughput scales linearly on local SSD (~140 MB/s per worker).
GIL Interaction
| operation | gil_released | parallel_speedup |
|---|---|---|
| TileDB I/O | Yes | ~3-6x with 4 workers |
| TileDB decompression | Yes | ~3-4x with 4 workers |
| NumPy array ops | Partially | ~1.5-2x |
| Pure Python | No | ~1x |
RadiObject + MONAI/TorchIO
RadiObject is a storage layer that complements MONAI and TorchIO transforms:
from radiobject.ml.compat import as_torchio_subject
subject = as_torchio_subject(radi.T1w.iloc[0], radi.seg.iloc[0])
augmented = my_torchio_transform(subject)
The benchmarks compare I/O performance only. Use RadiObject for data loading, then apply MONAI/TorchIO transforms.
Running Benchmarks
# Export AWS credentials for S3 benchmarks (use your own profile)
eval $(aws configure export-credentials --profile <your-profile> --format env)
python benchmarks/run_experiments.py --all
See benchmarks/README.md for details.
